Multi-pole Radial Magnetic Ring for Sensor  Modle No. MPRR-04
Coating: Ni-Cu-Ni Plated
Grade: N35, N38, N48, N50, N35M, N38M, N45M, N35SH, N38SH, N42SH, N45SH, N33UH, N35UH
Application: Motor, Rotor, Sensor, Actuator and etc.
Our multipole ring magnet products are custom designed for your application requirements.
Our teams of sales and engineering professionals are able to custom create a specific multipole ring magnet to meet your most demanding application requirements. To discuss your needs for multiple ring magnet solutions, contact us.

Magnetic Products Inc. can offer high efficiency multipole magnetic rings. These Neodymium (NdFeB) rings are revolutionizing the permanent magnet space for synchronous motors, stepping motors and DC brushless motors widely used in automotive, computers, electronics, communications, office, school equipment and common household products. Until recently, full magnetic rings were made of separate magnets joined together to create the desired ring shape. Now new technology enables the creation of super strong, one piece, multi-pole radial magnetic rings.

Rotor Injected NdFeB Magnet

Multi-pole Plastic Bonded Neo Magnets

Bonded Neo Radial Ring

Sintered NdFeB Radial Oriented Ring

Sintered NdFeB Radial Oriented Ring Introduction：
Radial ring is whole radial oriented ring magnet, it can be magnetized as multi-pole, skewed and uni-pole magnetized. The ring mainly used as induction magnet for motors. It can improve the motors’ performance and property. It is the future development tendency of motor magnets. MPCO is one of the best sintered NdFeB ring magnet manufacturer in China.

Advantage：
● Assembling easier.
● Mechanical precision better.
● Stable magnetic property.
● Improve the motor performance.

SINTERED NDFEB RADIAL RING GRADES:

Grade	Remanence Br(kGs)	Coercivity Hc(kOe)	Intrinsic Coercivity Hcj(kOe)	Max Energy Product (BH)max	Operating Temp. °C
N35	11.7-12.2	≥10.9	≥12	33-36  (MGOe)	80
N38	12.2-12.5	≥11.3	≥12	36-39  (MGOe)	80
N48	13.8-14.2	≥11.6	≥12	46-49  (MGOe)	80
N35M	11.7-12.2	≥10.9	≥14	33-36  (MGOe)	100
N38M	12.2-12.5	≥11.3	≥14	36-39  (MGOe)	100
N45M	13.2-13.8	≥12.5	≥14	43-46  (MGOe)	100
N35SH	11.7-12.2	≥11.0	≥20	33-36  (MGOe)	150
N38SH	12.2-12.5	≥11.4	≥20	36-39  (MGOe)	150
N42SH	12.8-13.2	≥12.4	≥20	40-43  (MGOe)	150
N45SH	13.2-13.8	≥12.6	≥20	43-46  (MGOe)	150
N33UH	11.3-11.7	≥10.7	≥25	31-34  (MGOe)	180
N35UH	11.8-12.2	≥10.8	≥25	33-36  (MGOe)	180

Related

Multipole Neodymium Ring Magnets for RotorAugust 20, 2018Similar post

Multi-pole Radial Magnetic Ring for SensorAugust 20, 2018Similar post

Radial Multiple Poles Ring MagnetAugust 20, 2018Similar post

Sintered Neodymium Multipole Ring Magnet

Sintered Neodymium Multipole Ring Magnet Modle No. MPRR-05
Coating: Epoxy Plated
Grade: N35, N38, N48, N50, N35M, N38M, N45M, N35SH, N38SH, N42SH, N45SH, N33UH, N35UH
Application: Motor, Rotor, Sensor, Actuator and etc.
Our multipole ring magnet products are custom designed for your application requirements.
Our teams of sales and engineering professionals are able to custom create a specific multipole ring magnet to meet your most demanding application requirements. To discuss your needs for multiple ring magnet solutions, contact us.

Sintered multi-pole ring is a new type of ring magnet, produced by special technology. By this technology, surface magnetic flux can reach top level, about 50%-100% higher than the arc magnets and radial ring magnets. The surface flux is distributed by sine wave shape. Because of its high surface gauss, it can remarkably raise the efficiency of motors efficiency, and it also helps motor to be light-weight and save raw materials.These make it to be a good choice for high-performance motors. multi-pole radial magnetic ring for sensor

Advantage：
1-Higher flux density
2-Rotor shaft can be non-magnetic material, to reduce weight of motor without reducing magnet performance
3-Higher utilization of Permanent magnet

Multipole Ring Ferrite Magnets for Linear Sensor

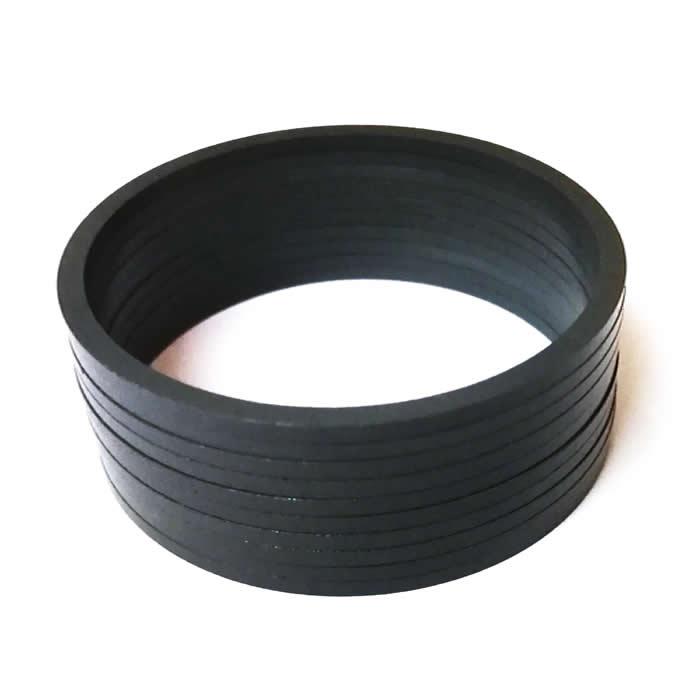

Multipole Sensor Magnet for Encoder Linear Rotary

Isotropic Sintered Ferrite Magnets for Stepper Motor

Sintered Ferrite Permanent Multipole Magnet Rings for Stepping Motor

Radial sintering ring magnets

The advantages are significant:
The cylindrical shape allows smaller mechanical tolerance compared to segment magnets
Motor assembly is made much easier; installation of one or more rings versus gluing arcs into place.
Currently attainable qualities: 35H, 40H, 45H, 38M, 35SH, 38SH, 42SH, 35UH, 40UH

Radial sintering may prevent so-called “weak spots”
Homogeneous flux of the poles
Uniformity of the magnetic field is significantly better than that of segment magnets
Magnets are multi-poled – thus the ring does not compromise the magnetic properties
Ring magnets offer substantial cost savings on assembling the rotor
No additional rings or protecting cases are required for fixation
Different types of magnetization are possible: diametrical, multipolar as well asso called “skewed” magnetization
This ring provides high cost-effectiveness as well as better motor performance (as compared to the usual segment magnets)

The radial orientation results in a super strong magnet by virtue of superior metallurgy developed specifically to BE radially oriented.

Epoxy Plated Multi-pole Magnetic Ring Introduction：
Radial ring is whole radial oriented ring magnet, it can be magnetized as multi-pole, skewed and uni-pole magnetized. The ring mainly used as induction magnet for motors. It can improve the motors’ performance and property. It is the future development tendency of motor magnets. MPCO is one of the best sintered NdFeB ring magnet manufacturer in China.

Advantage：
● Assembling easier.
● Mechanical precision better.
● Stable magnetic property.
● Improve the motor performance.

Neodymium Multi-poled Radial Ring

NdFeB Skewed Multipolar Ring Magnets

Epoxy Plated Multi-pole Magnetic Ring

Sintered Neodymium Multipole Ring Magnet

Epoxy Plated Multi-pole Magnetic Ring

Epoxy Plated Multi-pole Magnetic Ring, Anisotropic Radially Aligned Multiple Poles Ring Permanent Magnets, Multi-pole Sintered NdFeB Radial Oriented Ring Magnet for Motor and Sensor, Super Strong Radial Rings China Factory

Epoxy Plated Multi-pole Magnetic Ring Modle No. MPRR-06
Coating: Epoxy Plated
Grade: N35, N38, N48, N50, N35M, N38M, N45M, N35SH, N38SH, N42SH, N45SH, N33UH, N35UH
Application: Motor, Rotor, Sensor, Actuator and etc.
Our multipole ring magnet products are custom designed for your application requirements.
Our teams of sales and engineering professionals are able to custom create a specific multipole ring magnet to meet your most demanding application requirements. To discuss your needs for multiple ring magnet solutions, contact us.

sintered neodymium multipole ring magnet is a new type of ring magnet, produced by special technology. By this technology, surface magnetic flux can reach top level, about 50%-100% higher than the arc magnets and radial ring magnets. The surface flux is distributed by sine wave shape. Because of its high surface gauss, it can remarkably raise the efficiency of motors efficiency, and it also helps motor to be light-weight and save raw materials.These make it to be a good choice for high-performance motors. multi-pole radial magnetic ring for sensor

Multi-pole Radial Magnetic Ring for Sensor

Multipole Neodymium Ring Magnets for Rotor

Radial Multiple Poles Ring Magnet

Sintered NdFeB Multi-pole Radial Ring Magnets

Sintered NdFeB Radial Multipolar Ring Magnets

Sintered NdFeB Radial Multipolar Ring Magnets are multi-poled – thus the ring does not compromise the magnetic properties
Ring magnets offer substantial cost savings on assembling the rotor
No additional rings or protecting cases are required for fixation
Different types of magnetization are possible: diametrical, multipolar as well asso called “skewed” magnetization
This ring provides high cost-effectiveness as well as better motor performance (as compared to the usual segment magnets)
The radial orientation results in a super strong magnet by virtue of superior metallurgy developed specifically to BE radially oriented.

Nickel or Epoxy Plated Multipolar Ring Magnets Introduction：
Radial ring is whole radial oriented ring magnet, it can be magnetized as multi-pole, skewed and uni-pole magnetized. The ring mainly used as induction magnet for motors. It can improve the motors’ performance and property. It is the future development tendency of motor magnets. MPCO is one of the best sintered NdFeB ring magnet manufacturer in China.

Advantage：
● Assembling easier.
● Mechanical precision better.
● Stable magnetic property.
● Improve the motor performance.

Sintered NdFeB Radial Multipolar Ring Magnets GRADES:

Grade	Remanence Br(kGs)	Coercivity Hc(kOe)	Intrinsic Coercivity Hcj(kOe)	Max Energy Product (BH)max	Operating Temp. °C
N35	11.7-12.2	≥10.9	≥12	33-36  (MGOe)	80
N38	12.2-12.5	≥11.3	≥12	36-39  (MGOe)	80
N48	13.8-14.2	≥11.6	≥12	46-49  (MGOe)	80
N35M	11.7-12.2	≥10.9	≥14	33-36  (MGOe)	100
N38M	12.2-12.5	≥11.3	≥14	36-39  (MGOe)	100
N45M	13.2-13.8	≥12.5	≥14	43-46  (MGOe)	100
N35SH	11.7-12.2	≥11.0	≥20	33-36  (MGOe)	150
N38SH	12.2-12.5	≥11.4	≥20	36-39  (MGOe)	150
N42SH	12.8-13.2	≥12.4	≥20	40-43  (MGOe)	150
N45SH	13.2-13.8	≥12.6	≥20	43-46  (MGOe)	150
N33UH	11.3-11.7	≥10.7	≥25	31-34  (MGOe)	180
N35UH	11.8-12.2	≥10.8	≥25	33-36  (MGOe)	180

Ring Shaped Sintered Ferrite Anisotropic Magnet



Polar Sintered Anisotropic Ferrite Multipole Rings



Sintered Ferrite Anisotropic Multipole Magnet Ring



Injection Mould NdFeB Magnet for Rotor

NdFeB Skewed Multipolar Ring Magnets

NdFeB Skewed Multipolar Ring Magnets Modle No. MPRR-07
Coating: Epoxy Plated
Grade: N35, N38, N48, N50, N35M, N38M, N45M, N35SH, N38SH, N42SH, N45SH, N33UH, N35UH
Application: Motor, Rotor, Sensor, Actuator and etc.
Our multipole ring magnet products are custom designed for your application requirements.
Our teams of sales and engineering professionals are able to custom create a specific multipole ring magnet to meet your most demanding application requirements. To discuss your needs for epoxy plated multi-pole magnetic ring  solutions, contact us.

These Neodymium (NdFeB) rings are revolutionizing the permanent magnet space for synchronous motors, stepping motors and DC brushless motors widely used in automotive, computers, electronics, communications, office, school equipment and common household products. Until recently, full magnetic rings were made of separate magnets joined together to create the desired ring shape. Now new technology enables the creation of super strong, one piece, multi-pole radial magnetic rings.

The advantages are significant:
The cylindrical shape allows smaller mechanical tolerance compared to segment magnets
