Channel Magnet Neodymium with Countersunk Borehole Specifications:
Item No.: MP-NdCMC-40
Magnet Material: Neodymium
Material: Block Neodymium Magnet W/ 2 Countersunk Boreholes + U-shape Steel Plates
Shape: Channel
Size: L 40 x W 13,5 x T 5mm
Pull: 17kg
Plating: Nickel / Zinc
Can be fixed in place with M3 countersunk screws
Working temperature: 80°C
Channel magnet Neodymium 40 x 13,5 x 5mm with countersunk borehole – holds 17 kg
Neodymium channel magnets are made of a powerful Neodymium magnet sunken in to a steel shell meaning that the north pole is on the centre of the magnetic face and the south pole is on the outer edge around it. The U profile from steel increases the adhesive force of the magnets giving them an incredible hold for their size. An added advantage of pot magnets is that they are resistant to chipping or cracking following constant impact with a steel surface. These magnets are countersunk on the magnetic face and can be fixed to a surface with a M3 screw.

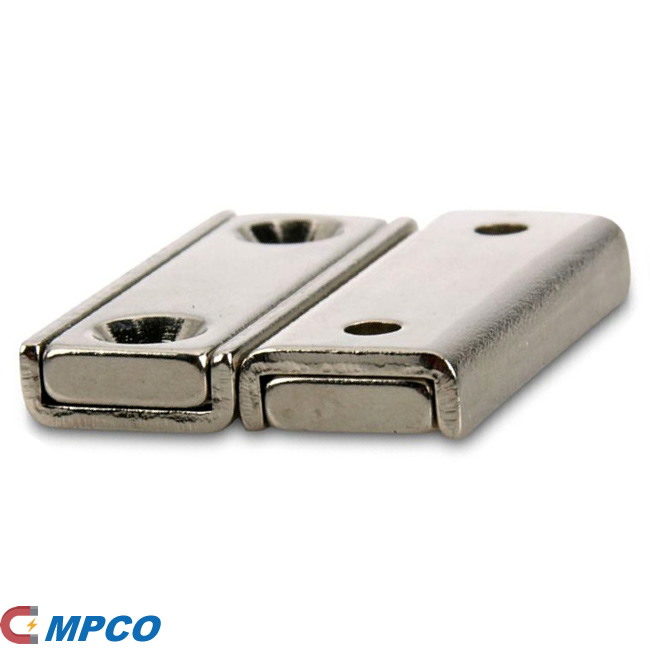

Countersunk Borehole Neodymium Channel Door Latches Magnets
Channel Magnets, Latch Magnet Channel Assemblies, Mounting Magnets, Countersunk Neodymium Channel Magnets
Channel magnets utilize a neodymium magnet and a steel channel.
They are very versatile in application – for holding and positioning.
All have mounting holes that allow the magnet to be screwed or bolted into place.
Strong channel magnets are made from neodymium magnets, the world’s strongest magnets. these neodymium channel mounting magnets offer much stronger holding power than ceramic magnets.
This handy and useful channel magnet has a strong neodymium bar magnet embedded inside a Nickel coated steel channel to offer the maximum gripping power. The rectangular steel channel offers protection for the magnet and concentrates the magnetic force on the magnet surface.
The channel magnet has two countersunk holes that are perfect for mounting with a flat head screw or bolt.
